Worm Gear

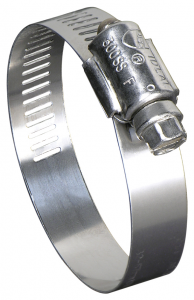

1/2″ Hy-Gear® 67-4

1/2″ Hy-Gear 67-4 is an IAPMO listed all 300 grade stainless steel clamp designed for greater resistance to corrosion. Featuring the UPC shield, it is commonly used in plumbing and underground applications where corrosion resistance is important. NOTE: For commercial shipping, extra strenuous or more extreme corrosion resistance application needs, the all 316 stainless steel 1/2″ Hy-Gear 67-6 is recommended.

67-4 Series sizes 04 through 116 are MADE IN USA.

Material Specifications

Screw: 5/16″ Hex Head; 300 Stainless

UPC  Shield: 300 Stainless

Band: 1/2″; 300 Stainless

Installation Torque: 35 in-lbs (4 Nm)

Find Your Part Number

SizeMin (in)Max (in)Min (mm)Max (mm)IDEAL-TRIDON 67-4TRIDON 620P
063/87/8102267004-0006620-P06
087/161112567004-0008620-P08
101/21-1/16132767004-0010620-P10
121/21-1/4133267004-0012620-P12
1611/161-1/2183867004-0016620-P16
203/41-3/4194467004-0020620-P20
2412255167004-0024620-P24
281-1/42-1/4325767004-0028620-P28
321-1/22-1/2386367004-0032620-P32
363/42-3/4197067004-0036620-P36
4013267667004-0040620-P40
441-1/43-1/4328267004-0044620-P44
481-1/23-1/2388967004-0048620-P48
521-3/43-3/4449567004-0052620-P52
56245110167004-0056620-P56
602-1/44-1/45710867004-0060620-P60
642-1/24-1/26411467004-0064620-P64
72357612767004-0072620-P72
803-1/25-1/28914067004-0080620-P80
884610215267004-0088620-P88
964-1/26-1/211416567004-0096620-P96
1045712717867004-010462P-104
1125-1/27-1/214019067004-0112
1165-3/47-3/414619767004-0116
1206815220367004-0120
1286-1/28-1/216521667004-0128
1326-3/48-3/417122267004-0132
1407-1/49-1/418423567004-0140
1522105125467004-0152
1641-3/410-3/44427367004-0164
1769-1/211-1/224129267004-0176
188212-1/45231167004-0188
20811-1/413-1/229434367004-0208
21211-1/213-3/430034967004-0212
22412-1/214-1/231936867004-0224
23613-1/415-1/433838767004-0236
2481-3/4164440667004-0248
27015-1/417-1/239244167004-0270
312182045950867004-0312
33219-1/421-1/449154067004-0332
39014-1/22537163667004-0390
502283271181267004-0502
53824-3/434-1/462886967004-0538
5693236-1/481081967004-0569

Additional sizes available.

Attractive Packaging

image_blisters_pg37_web
image_bags_pg36_web
image_subpacks_pg37_web
