Worm Gear

1/2″ Hy-Gear® 67-1

67-1

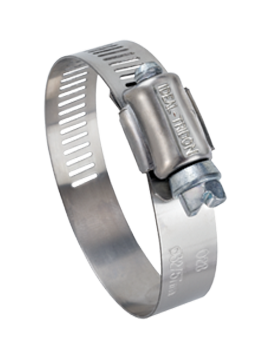

1/2″ Hy-Gear 67-1 clamps are suitable for most common household and automotive applications. The bands have clean punched rectangular perforations that hold strong and connect easily.

67-1 Series sizes 6 through 104 are MADE IN USA.

Material Specifications

Screw: 5/16″ Hex Head; 410 Stainless

Housing: 200 Stainless

Band: 1/2″; 200 Stainless

Installation Torque: 35 in-lbs (4 Nm)

Find Your Part Number

SizeMin (in)Max (in)Min (mm)Max (mm)IDEAL-TRIDON 67-1
63/87/810226706-1
87/16111256708-1
101/21-1/1613276710-1
121/21-1/413326712-1
1611/161-1/218386716-1
203/41-3/419446720-1
241225516724-1
281-1/42-1/432576728-1
321-1/22-1/238636732-1
363/42-3/419706736-1
401326766740-1
441-1/43-1/432826744-1
481-1/23-1/238896748-1
521-3/43-3/444956752-1
5624511016756-1
602-1/44-1/4571086760-1
642-1/24-1/2641146764-1
7235761276772-1
803-1/25-1/2891406780-1
88461021526788-1
964-1/26-1/21141656796-1
104571271786799-1

Additional sizes available.
