Worm Gear

1/2″ Hy-Gear® 57-0

57-0

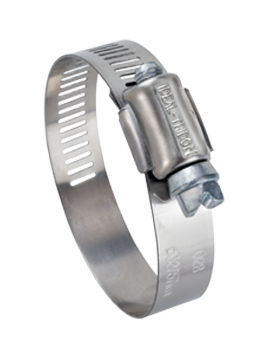

1/2″ Hy-Gear 57-0 is a part stainless general purpose hose clamp suitable for common home and auto applications.

Material Specifications

Screw: 5/16″ Hex Head; Plated Carbon Steel

Housing: 200 Stainless

Band: 1/2″; 200 Stainless

Installation Torque: 35 in-lbs (4 Nm)

Find Your Part Number

SizeMin (in)Max (in)Min (mm)Max (mm)IDEAL-TRIDON 57-0TRIDON 611
63/87/8102257060611-006
87/161112557080611-008
101/21-1/16132757100611-010
121/21-1/4133257120611-012
1611/161-1/2183857160611-016
203/41-3/4194457200611-020
2412255157240611-024
281-1/42-1/4325757280611-028
321-1/22-1/2386357320611-032
363/42-3/4197057360611-036
4013267657400611-040
441-1/43-1/4328257440611-044
481-1/23-1/2388957480611-048
521-3/43-3/4449557520611-052
56245110157560611-056
602-1/44-1/45710857600611-060
642-1/24-1/26411457640611-064
72357612757720611-072
803-1/25-1/28914057800611-080
884610215257880611-088
964-1/26-1/211416557960611-096
1045712717857104611-104

Additional sizes available.
